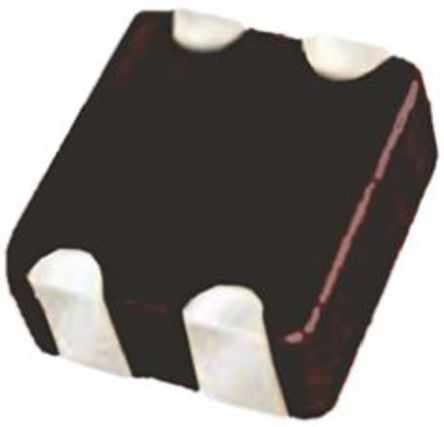

Image is for your reference only,please check specifications for details

EXC24CE900U - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC6016346
Category:
Filter
Package:
1210
Datasheet:
Datasheet 3D Model
Description:
Common Mode Chokes Dual 90Ω 100MHz 160mA 1.75Ω DCR SMD Embossed Carrier T/R
Stock Locations:
Availability:
10,813 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Features Burst/radiation noise ﬁ ltering for audio circuits The optimally magnetic-coupled ferrite beads allow for the ﬁ ltering of both common and normal mode noises The strong multi-layer structure provides high resistance to reﬂ ow soldering heat and a high mounting reliability Magnetic shield type High Impedance : 220 to 1 k （EXC24CB type) Low Resistance Value : 0.4 max. (EXC24CP type) High Impedance : 600 , Low Resistance Value : 0.9 max. (EXC24CN type) Explanation of Part Numbers EXC24CB/CP Type Construction Dimensions in mm (not to scale) Recommended Applications Receiver lines, speaker lines, microphone lines and headset of mobile phones. Audio signal lines of Portable audio equipment, PCs,

Show

EXC24CE900U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	1210
Frequency	100 MHz
Voltage Rating (DC)	5.00 V
Current Rating	160 mA
Resistance	90 Ω
Shielding	Yes
DC Resistance (DCR)	1.75 Ω
Current Rating (Max)	0.16 A
Current Rating (DC)	160 mA
Voltage Rating (Max)	5 VDC
Voltage Rating	5 V
Resistance (DC Max)	1.75 Ω
	Show
Size-Length	1.25 mm
Size-Width	1.15 mm
Size-Height	1.25 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
