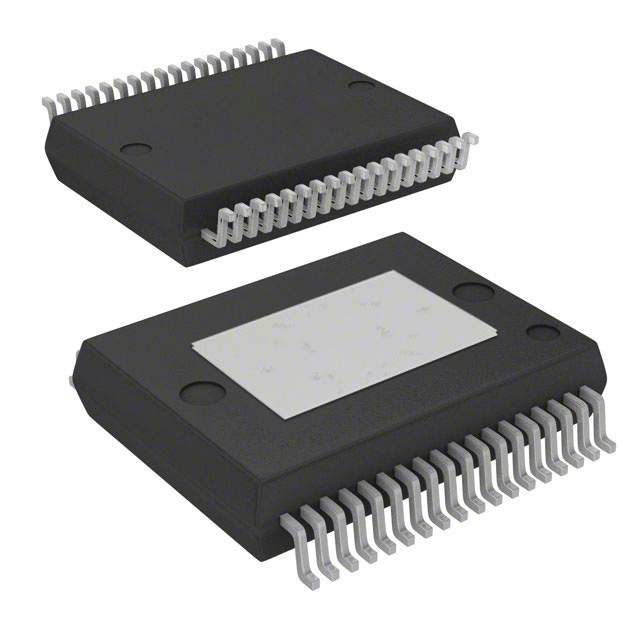

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L9952GXP is a Power Management System IC containing two low drop regulators with advanced contact monitoring and additional peripheral functions.
The integrated standard serial peripheral interface (SPI) controls all L9952GXP operation modes and provides driver diagnostic functions.
**Key Features**
1 High side driver Out_HS ( RDSon,typ = 1 )
4 High side drivers for e.g. LED or HALL (RDSon,typ = 7 )
Outputs are short circuit protected
2 Relay drivers ( RDSon,typ = 2 )
Temperature warning and thermal shutdown
2 Op amp"s for current sensing in GND return lines
24 bit SPI interface for mode control and diagnostic
LIN 2.1 compliant (SAEJ2602 compatible) transceiver
Two 5V low-drop voltage regulators (250mA, 100mA continuous mode
Window watchdog and fail-safe output
Low stand-by current: VBAT stby, 7μA; ,V1 stby, 45μA, (75μA in cycl. sense)
Wake-up logic with cyclic contact monitoring
Output drivers
Interrupt output
