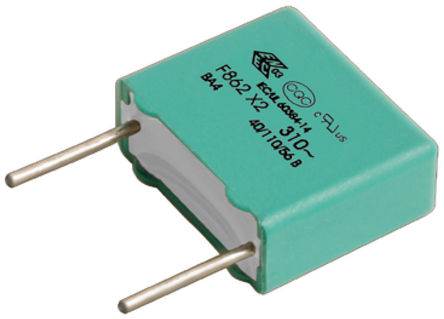

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The F862 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box material recognized by UL 94 V–0. The F862 Series is ideal for harsh environmental conditions and meets the demanding Automotive Electronics Council"s AEC–Q200 qualification requirements.*
Features:
**
* Approvals: ENEC, UL, cUL, CQC
* Rated Voltage: 310 VAC 50/60 Hz
* Capacitance Range: 0.1 to 4.7 μF
* Lead Spacing: 15.0 to 27.5 mm
* Capacitance Tolerance: ±20%, ±10%
* Climatic Category: 40/110/56, IEC 60068-1
* Tape and Reel in Accordance with IEC 60286-2
* RoHS Compliant and Lead-Free Terminations
* Operating Temperature Range of –40°C to +110°C
* 100% Screening Factory Test at 1,900 VDC
* Qualification Based on AEC-Q200 Guidelines

Show

F862BY474K310ALR0L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, Box
Pin Pitch	15 mm
Voltage Rating (DC)	630 V
Voltage Rating (AC)	310 V
Capacitance	0.47 µF
Capacitance Tolerance	±10 %
Part Family	F862
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	310 VAC
	Show
Size-Length	18 mm
Size-Width	11 mm
Size-Height	19 mm
Lead Length	25 mm
Dielectric Material	Polypropylene
Operating Temperature	-40℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
