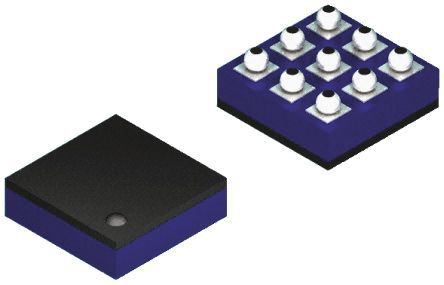

Image is for your reference only,please check specifications for details
- FAN5903UCX - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC152378600
-
Category:Voltage Regulator
-
Package:WLCSP-9
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.7V to 5.5V Step Down Dual-Out 0.4V to 3.5V/0.4V to 5.5V 1A 9Pin WLCSP T/R
-
Stock Locations:
-
Availability:10,831 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.49
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down FAN5903UCX DC to DC converter from Fairchild Semiconductor. This converter"s 2 outputs can produce a current up to 1 A. It only needs a voltage of at least 2.7 V while not exceeding 5.5 V to effectively power your circuit. With an adjustable output that has a voltage of 0.4 to 3.5|0.4 to 5.5 V, this is power management at its best. This converter is 96 % efficient. It has a switching frequency of 3000|6000 kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
FAN5903UCX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 9 Pin |
| Case/Package | WLCSP-9 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.4V ~ 5.5V |
| Output Current | 1 A |
| Switching Frequency | 3MHz, 6MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 3.5 V |
| Output Voltage (Min) | 0.4 V |
| Output Current (Max) | 2.4 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 2.7V ~ 5.5V |
| Show | |
| Size-Length | 1.34 mm |
| Size-Width | 1.292 mm |
| Size-Height | 0.292 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
