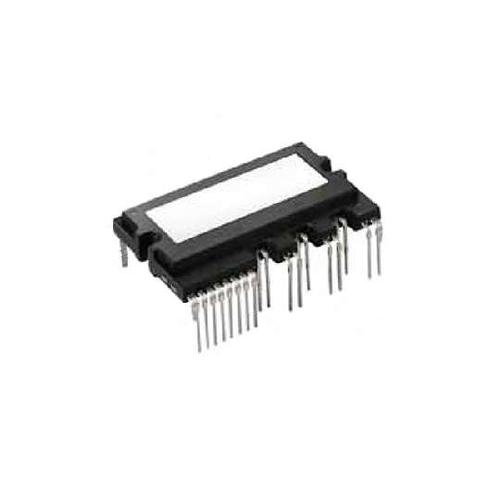

FCBS0550 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC108690521
Category:
Motor Driver
Package:
SPM-27-BA
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FCBS0550 Intelligent Power Module (IPM), MOSFET, 500V, 5A, 2500Vrms, SPM27-BA, SPM
Stock Locations:
Availability:
1,776 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 20.38

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FCBS0550 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM-27-BA
Supply Voltage (DC)	400V (max)
Number of Outputs	3 Output
Output Voltage	500 V
Output Current	5 A
Power Dissipation	25000 mW
Isolation Voltage	2500 Vrms
Output Voltage (Max)	500 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	25000 mW
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	13.5 V
	Show
Size-Height	5.5 mm
Operating Temperature	-20℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
