Description

Description
Employing NPT technology, Fairchild’s AND series of IGBTs provides low conduction and switching losses. The AND series offers an solution for application such as induction heating (IH), motor control, general purpose inverters and uninterruptible power supplies (UPS).
Features
• High speed switching
• Low saturation voltage : VCE(sat)= 2.6 V @ IC= 40A
• High input impedance
• CO-PAK, IGBT with FRD : trr= 75ns (typ.)

Show

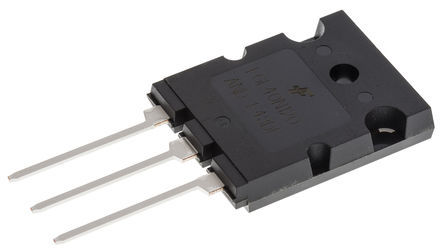

FGL40N120ANDTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Voltage Rating (DC)	1.20 kV
Current Rating	64.0 A
Power Dissipation	500 W
Rise Time	20.0 ns
Breakdown Voltage (Collector to Emitter)	1200 V
Reverse recovery time	112 ns
Input Power (Max)	500 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500000 mW
	Show
Size-Length	20 mm
Size-Width	5 mm
Size-Height	26 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
