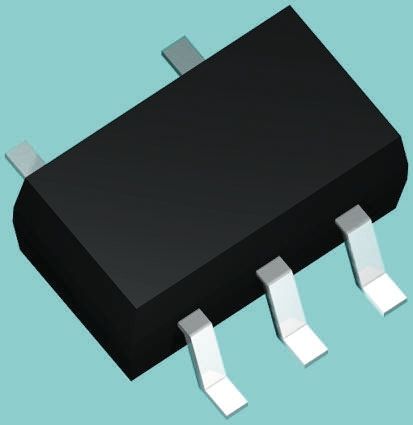

Image is for your reference only,please check specifications for details

FMN1T148 - ROHM Semiconductor
Manufacturer:
ROHM Semiconductor
ManyChip's Part#:
MC16909985
Category:
Diode
Package:
SOT-753
Datasheet:
Datasheet 3D Model
Description:
Rectifier Diode, 4Element, 0.025A, 80V V(RRM), Silicon, SC-74A, 5Pin
Stock Locations:
Availability:
1,451 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FMN1T148 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-753
Voltage Rating (DC)	80.0 V
Current Rating	25.0 mA
Capacitance	3.50 pF
Output Current	≤25.0 mA
Number of Positions	5 Position
Forward Voltage	900mV @5mA
Power Dissipation	80 mW
Reverse recovery time	4 ns
Forward Current	80 mA
Max Forward Surge Current (Ifsm)	250 mA
Maximum Forward Voltage (Max)	900 mV
Forward Current (Max)	80 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	80 mW
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.1 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
