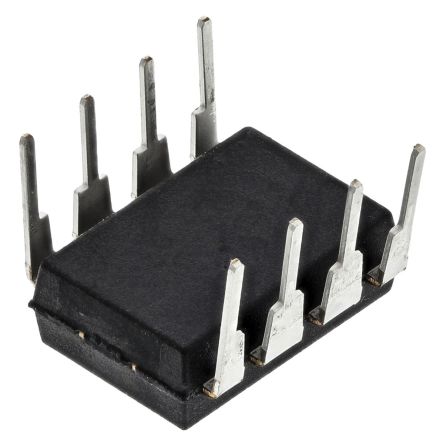

- FOD260L - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC10087104
-
Category:Optocoupler, Optoisolator
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:8Pin DIP 10Mbit/s Single-Channel High Speed 3.3V Logic Gate Output Optocoupler
-
Stock Locations:
-
Availability:10 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.77
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- These optocouplers consist of an AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate. Devices include a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 50 kV/µs at 1,000V common mode.
- Features
- ---
- |
- Compact SO8 package (except FOD260L . 8-pin DIP)
- Very high speed . 10 MBit/s
- Superior CMR . 50 kV/µs at 2,000V peak
- Fan-out of 8 over -40°C to +85°C
- Logic gate output
- Strobable output (single channel devices)
- Wired OR-open collector
- Safety and regulatory approvals - UL1577 - DIN/EN IEC60747-5-2 (pending approval)
FOD260L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Rise/Fall Time | 22ns, 3ns |
| Output Current | 0.05 A |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Forward Voltage | 1.4 V |
| Power Dissipation | 0.085 W |
| Rise Time | 0.022 µs |
| Isolation Voltage | 5000 Vrms |
| Forward Current | 50 mA |
| Input Current (Min) | 50 mA |
| Reverse Breakdown Voltage | 5 V |
| Maximum Forward Voltage (Max) | 1.75 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 0.003 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 85 mW |
| Supply Voltage | 3V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
