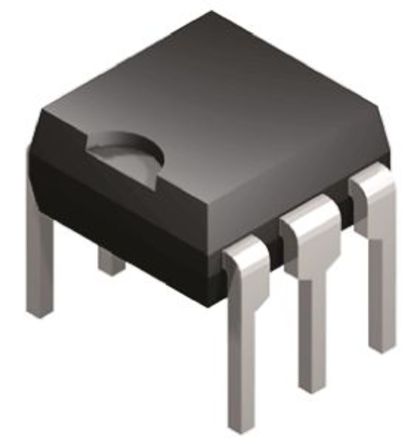

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FOD4208 is a 6-pin snubberless random phase TRIAC Driver consists of an infrared emitting diode coupled to a hybrid random phase TRIAC formed with two inverse parallel SCRs which form the TRIAC function capable of driving discrete TRIACs. It is suitable for solid-state relays, static motor starter and static power switches.
High static dv/dt (10000V/µs)
300mA On-state current
2mA High trigger sensitivity
850V Maximum working insulation voltage
6000V High allowable overvoltage

Show

FOD4208 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.28 V
Input Current	20 mA
Power Dissipation	500 mW
Rise Time	60 µs
Isolation Voltage	5000 Vrms
Holding Current	500 µA
Forward Current	30 mA
Input Voltage (Max)	1.5 V
Output Voltage (Max)	560 VAC
Input Current (Min)	30 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	30 mA
Fall Time	52 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
Input Voltage	1.28 V
	Show
Size-Length	7.8 mm
Size-Width	7 mm
Size-Height	4 mm
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
