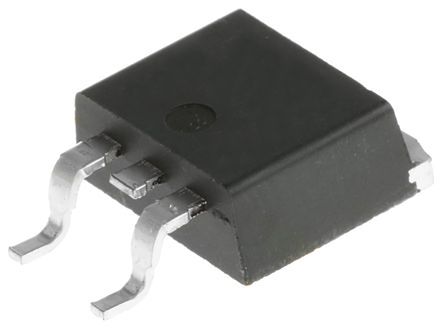

Image is for your reference only,please check specifications for details

FQB9N50CTM - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC76601282
Category:
MOSFET, MOSFET Transistor
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FQB9N50CTM MOSFET Transistor, N Channel, 9A, 500V, 0.65Ω, 10V, 2V
Stock Locations:
Availability:
2,147 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.35

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FQB9N50CTM is a QFET® N-channel enhancement-mode Power MOSFET produced using Fairchild Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce ON-state resistance, provide superior switching performance and high avalanche energy strength. It is suitable for switched mode power supplies, active power factor correction (PFC) and electronic lamp ballasts.
100% Avalanche tested
28nC Typical low gate charge
24pF Typical low Crss

Show

FQB9N50CTM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	500 V
Current Rating	9.00 A
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.65 Ω
Polarity	N-Channel
Power Dissipation	135 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	500 V
Breakdown Voltage (Drain to Source)	500 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	9.00 A
Rise Time	65 ns
Input Capacitance (Ciss)	1030pF @25V(Vds)
Input Power (Max)	135 W
Fall Time	64 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	135W (Tc)
	Show
Size-Length	10.67 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
