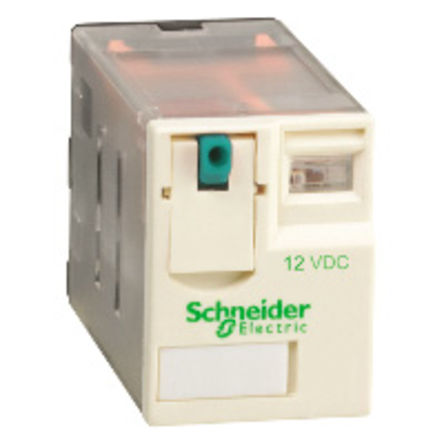

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Schneider Zelio RXM series are miniature plug-in relays. These electromechanical relays are compact, simple relays for HVAC and industrial applications.
UL and CSA certified
Switching capacity of 12A, 10A, 3A and 6A at 250VAC and 28VDC based on models
LED (depending on version) indicating the relay status
Four notches for rail mounting adapter or panel mounting adapter with fixing lugs
DPDT, 3PDT, 4PDT contact configurations
Sockets with mixed or separate contact terminals
AC and DC coils available based on ordering

Show

RXM4AB1JD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Plug In
Case/Package	-
Current Rating	8 A
Contacts Type	4PDT
Coil Voltage	12 VDC
Coil Resistance	160 Ω
Carry Current	6.00 A
Coil Voltage (DC)	12 V
Coil Power	900 mW
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	21 mm
Size-Height	27 mm
Contact Material	Silver
Operating Temperature	-40℃ ~ 55℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
