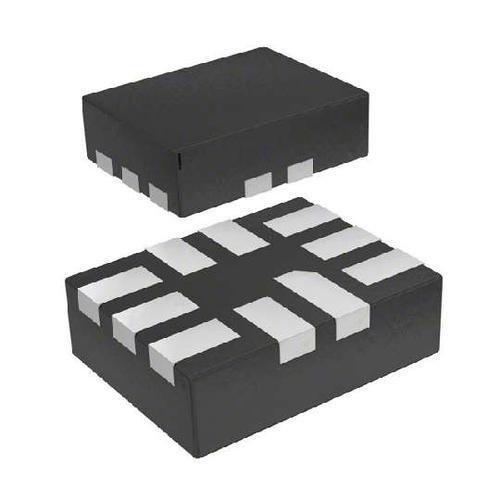

Image is for your reference only,please check specifications for details

FSA2269UMX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC101294870
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
UMLP-10
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FSA2269UMX Analog Switch, Dual Channel, SPDT, 2Channels, 0.4Ω, 1.65V to 4.3V, UMLP, 10Pins
Stock Locations:
Availability:
9,934 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FSA2269UMX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UMLP-10
Number of Outputs	4 Output
Number of Channels	2 Channel
Bandwidth	50.0 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	50 MHz
Supply Voltage	1.65V ~ 4.3V
	Show
Size-Length	1.8 mm
Size-Width	1.4 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
