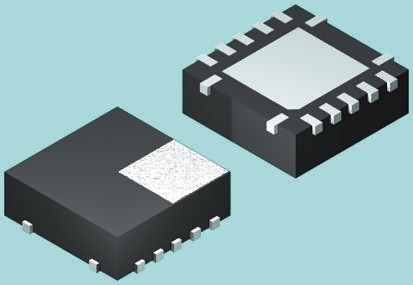

Image is for your reference only,please check specifications for details
- FXL4T245BQX - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC76705666
-
Category:Logic Controller, Logic IC
-
Package:WFQFN-14
-
Datasheet:Datasheet 3D Model
-
Description:Low Voltage Dual Supply 4Bit Signal Translator with Configurable Voltage Supplies and Signal Levels and 3-STATE Outputs, 14LD,DQFN,JEDEC MO-241,2.5 X 3MM, 3000/TAPE REEL
-
Stock Locations:
-
Availability:10,289 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.89
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Fairchild Semiconductor FXL4T245BQX level translator can control and allow the proper input voltage into your electronic circuits. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.1 V, while its maximum is 3.6 V.
FXL4T245BQX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | WFQFN-14 |
| Output Current | 24.0 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Bits | 4 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Output Channels | 1 Channel |
| Supply Voltage | 1.1V ~ 3.6V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 2.5 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
