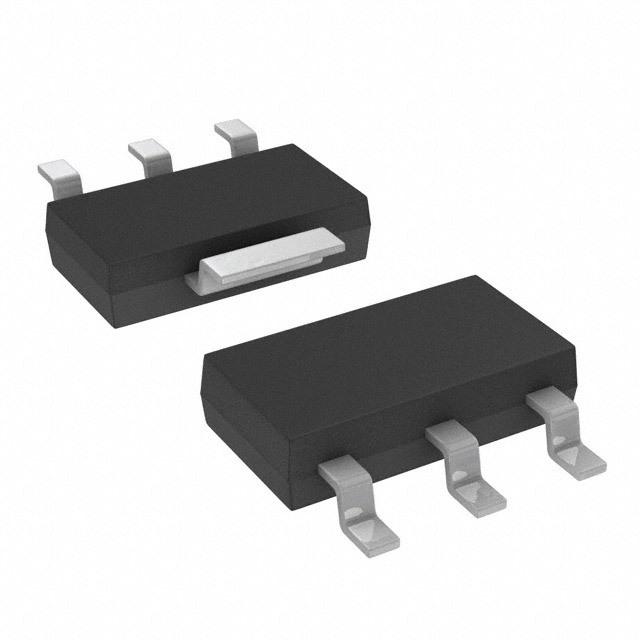

Image is for your reference only,please check specifications for details
- UA78M33CDCYR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1014400
-
Category:Voltage Regulator
-
Package:TO-261-4
-
Datasheet:Datasheet 3D Model
-
Description:Standard Voltage Regulator 3/4Pin 500mA Fixed 3.3V Positive Voltage Regulator Standard Regulator Pos 3.3V 0.5A 4Pin(3+Tab) SOT-223 T/R
-
Stock Locations:
-
Availability:389 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.46
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The UA78M33CDCYR is a fixed Voltage Regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. This regulator can delivers up to 500mA of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make it immune to overload. In addition to use as fixed-voltage regulator, this device can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulator.
- No external components
- Internal thermal-overload protection
- High power-dissipation capability
- Internal short-circuit current limiting
- Output transistor safe-area compensation
- Green product and no Sb/Br
UA78M33CDCYR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 25.0V (max) |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| Number of Positions | 4 Position |
| Quiescent Current | 4.50 mA |
| Output Capacitor Type | Capacitor Free |
| voltage rating | 2V @350mA |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 25 V |
| Input Voltage (Min) | 5.3 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 0.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Input Voltage | 5.3V ~ 25V |
| Show | |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
