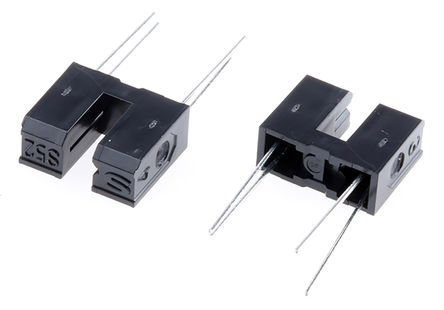

Image is for your reference only,please check specifications for details

GP1S52VJ000F - Sharp
Manufacturer:
Sharp
ManyChip's Part#:
MC17240630
Category:
Optical Sensor
Package:
PCB Mount
Datasheet:
Datasheet 3D Model
Description:
SHARP GP1S52VJ000F Transmissive Photo Interrupter, Phototransistor, Through Hole, 3mm, 0.5mm, 50mA, 6V
Stock Locations:
Availability:
70 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The GP1S52VJ000F is a standard Transmissive Photointerrupter with opposing emitter and detector in a lead frame-plating case, providing non-contact sensing. For this family of devices, the emitter and detector are inserted in a case, resulting in a through-hole design. Flow soldering should be completed below 260°C and within 5 seconds.
Transmissive with phototransistor output
Vertical slit for alternate motion detection
-25 to 85°C Operating temperature range

Show

GP1S52VJ000F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	PCB Mount
Output Voltage	35 V
Output Current	≤20.0 mA
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.2 V
Input Current	20 mA
Power Dissipation	75 mW
Rise Time	3 µs
Breakdown Voltage (Collector to Emitter)	35 V
Forward Current	50 mA
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Fall Time	20 µs
Fall Time (Max)	20000 ns
Fall Time (Max)	15000 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	75 mW
	Show
Size-Length	12.2 mm
Size-Width	5 mm
Size-Height	10 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
