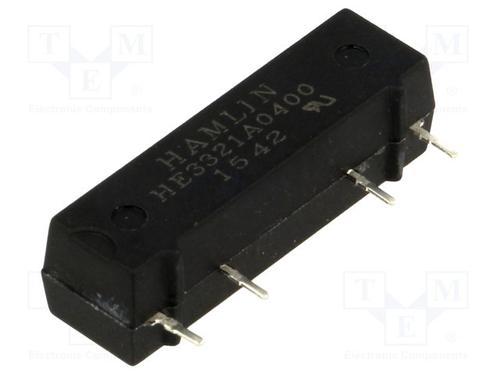

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HE3321A0400 is a standard miniature single in-line Reed Relay with SPST-NO contact configuration. The HE3300 series reed relay features lower power coil consumption than competing electromechanical devices and hermetically sealed switching contact is immune to its environment.
- 3.75VDC Must operate voltage
- 0.5VDC Must release voltage
- 22VDC Maximum coil voltage
HE3321A0400 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Contacts Type | SPST-NO |
| Power Dissipation | 10 W |
| Contact Resistance | 150 mΩ |
| Contact Current Rating | 500 mA |
| Coil Voltage | 5 VDC |
| Coil Current | 10 mA |
| Coil Resistance | 500 Ω |
| Carry Current | 1.20 A |
| Coil Voltage (DC) | 5 V |
| Switching Current (Max) | 0.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Maximum Contact Resistance (Max) | 150 mΩ |
| Show | |
| Size-Length | 24.1 mm |
| Size-Width | 7.62 mm |
| Size-Height | 7.4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
