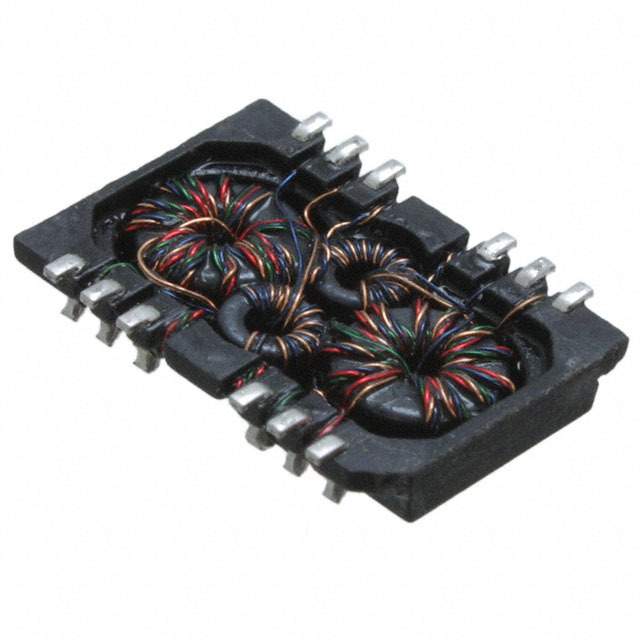

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- HX0068ANL is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. HX0068ANL is described as MODULE 1:1 100D SIN SMD. Perfect Parts is a supplier of Transformers and other Miscellaneous.
HX0068ANL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 12 Pin |
| Number of Channels | 1 Channel |
| Isolation Voltage | 1.5 kV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Minimum CMRR Range | -30dB @100MHz |
| Show | |
| Size-Length | 12.7 mm |
| Size-Width | 9.652 mm |
| Size-Height | 2.08 mm |
| Weight | 0.454 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
