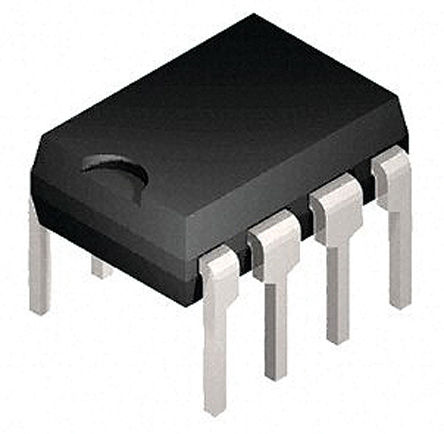

ICE3B1565J - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC43375533
Category:
AC to DC Converter, AC/DC Power Module
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
AC to DC Switching Converter Off-Line Switcher/SMPS Controller 74.5kHz Tube 8Pin PDIP
Stock Locations:
Availability:
252 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICE3B1565J is an offline SMPS Current Mode Controller with integrated 650V CoolMOS® and start-up cell. The CoolSET®-F3 (Jitter version) meets the requirements for offline battery adapters and low cost SMPS for the lower power range. By use of a BiCMOS technology a wide VCC range up to 26V is provided. This covers the changes in the auxiliary supply voltage if a CV/CC regulation is implemented on the secondary side. Furthermore an active burst mode is integrated to full-fill the lowest standby power requirements <100mW at no load and Vin = 270VAC. As during Active Burst Mode the controller is always active there is an immediate response on load jumps possible without any black out in the SMPS. In active burst mode the ripple of the output voltage can be reduced <1%. Furthermore auto restart mode is entered in case of over temperature, VCC overvoltage, output open loop or overload and VCC undervoltage.
Active burst mode for lowest standby power at light load controlled by feedback signal
Fast load jump response in active burst mode
Adjustable blanking window for high load jumps to increase reliability
User defined soft-start
Minimum of external components required
Internal leading edge blanking
BiCMOS technology provides wide VCC range
Frequency Jittering for low EMI
67kHz Fixed switching frequency

Show

ICE3B1565J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Power Rating	20 W
Number of Outputs	1 Output
Breakdown Voltage	650 V
Number of Positions	8 Position
Switching Frequency	67 kHz
Duty Cycle	75 %
Input Voltage (Max)	26 V
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Output Voltage (Max)	650 V
Operating Temperature (Max)	130 ℃
Operating Temperature (Min)	-25 ℃
Input Voltage	≤26 V
	Show
Size-Length	9.77 mm
Size-Width	6.6 mm
Size-Height	4.8 mm
Operating Temperature	-25℃ ~ 130℃ (TJ)
Product Lifecycle Status	Not Recommended
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
