Description

The AD5290YRMZ10 is a high voltage, high performance and compact Digital Potentiometer. This device can be used as a programmable resistor or resistor divider. It performs the same electronic adjustment function as mechanical potentiometers, variable resistors and trimmers, with enhanced resolution, solid-state reliability and superior temperature stability. With digital rather than manual control, this provides layout flexibility and allows closed-loop dynamic controllability.
256 Positions
+20 to +30V Single-supply operation
±10 to ±15V Dual-supply operation
3-wire SPI®-Compatible serial interface
Low temperature coefficient 35ppm/°C typical
THD 0.006% typical
Midscale preset
iCMOS™ Process technology
Product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD.

Show

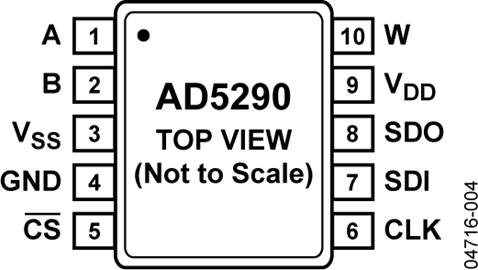

AD5290YRMZ10 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MSOP-10
Supply Voltage (DC)	4.50V (min)
Capacitance Tolerance	±30 %
Supply Current	0.015 mA
Number of Circuits	1 Circuit
Number of Positions	256 Position
Clock Speed	4.00MHz (max)
Resistance	10 kΩ
Resistance Tolerance	±30 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	30 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±35 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
