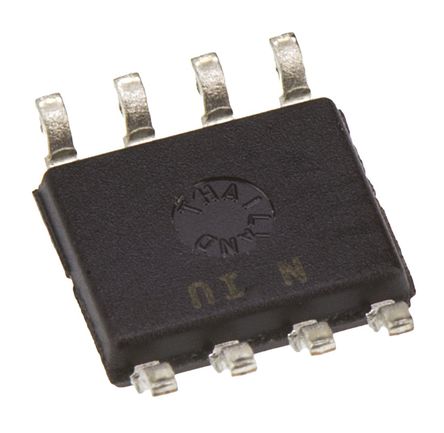

Image is for your reference only,please check specifications for details

ICL7662CBA+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC6747193
Category:
DC to DC Converter
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
MAXIM INTEGRATED PRODUCTS ICL7662CBA+ DC-DC Adjustable Charge Pump Voltage Converter, 4.5V to 20V in, -20V to -4.5V/20mA out, SOIC-8
Stock Locations:
Availability:
28 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.29

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICL7662CBA+ is a monolithic charge Pump Voltage Inverter for inexpensive negative supplies. The pump voltage inverter that will convert a positive voltage in the range of +4.5 to +20V to the corresponding negative voltage of -4.5 to -20V. The ICL7662 provides performance far superior to previous implementations of charge pump voltage inverters by combining low quiescent current with high efficiency. The ICL7662 has an oscillator, control circuitry and 4 power MOS switches on-chip, with the only required external components being two capacitors.
Cascaded voltage multiplication
99.70% Typical open circuit conversion efficiency

Show

ICL7662CBA+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	10 kHz
Number of Outputs	1 Output
Output Voltage	40.0 V
Output Current	20 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Switching Frequency	10 kHz
Input Voltage (Max)	20 V
Input Voltage (Min)	4.5 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	4.5V ~ 20V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
