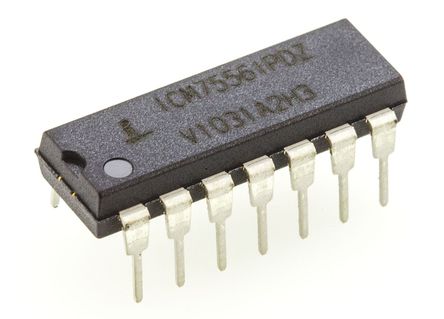

Image is for your reference only,please check specifications for details

ICM7556IPDZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC46146080
Category:
Clock Chip, Timing IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
INTERSIL ICM7556IPDZ Timer, Oscillator & Pulse Generator IC, CMOS RC Timer, 1MHz, Astable, Monostable, 2V to 18V, DIP-14
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICM7556IPDZ is a CMOS RC Timer provides significantly improved performance over the standard SE/NE555/6 and 355 timers, while at the same time being direct replacements for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low THRESHOLD, TRIGGER and RESET currents, no crowbarring of the supply current during output transitions, higher frequency performance and no requirement to decouple control voltage for stable operation. Specifically, the ICM7556 are stable controllers capable of producing accurate time delays or frequencies. The ICM7556 is a dual ICM7555, with the two timers operating independently of each other, sharing only V+ and GND. In the one shot mode, the pulse width of each circuit is precisely controlled by one external resistor and capacitor.
Exact equivalent in most cases for SE/NE555/556 or TLC555/556
120µA Low supply current
20pA Extremely low input currents
0.005%/°C at +25°C temperature stability
Normal reset function no crowbarring of supply during output transition
Can be used with higher impedance timing elements than regular 555/6 for longer RC time constants
Timing from microseconds through hours
Operates in both astable and monostable modes
Adjustable duty cycle
High output source/sink driver can drive TTL/CMOS
Outputs have very low offsets, HI and LO
ESD sensitive device, take proper precaution while handling the device.

Show

ICM7556IPDZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	1 MHz
Supply Voltage (DC)	2.00V (min)
Current Rating	60.0 A
Number of Outputs	1 Output
Supply Current	120 µA
Number of Positions	14 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	2V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	2 V
	Show
Size-Length	19.68 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
