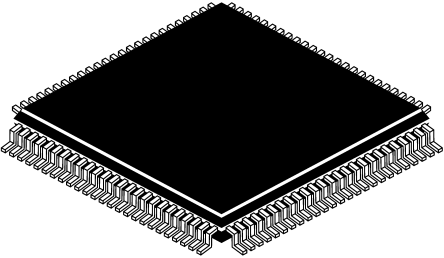

Image is for your reference only,please check specifications for details
- IDT7024L15PFG - Integrated Device Technology
-
Manufacturer:Integrated Device Technology
-
ManyChip's Part#:MC119095593
-
Category:RAM Memory, DRAM IC
-
Package:LQFP-100
-
Datasheet:Datasheet 3D Model
-
Description:SRAM Chip Async Dual 5V 64Kbit 4K x 16 15ns 100Pin TQFP Tray
-
Stock Locations:
-
Availability:289 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 25.98
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The IDT7024 is a high-speed 4Kx 16 Dual-Port Static RAM. The IDT7024 is designed to be used as a stand-alone 64K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 32-bit or wider memory system applications results in full-speed, error free operation without the need for additional discrete logic.
- Features
- ◆True Dual-Ported memory cells which allow simultaneous reads of the same memory location
- ◆High-speed access
- – Military: 20/25/35/55/70ns (max.)
- – Industrial: 55ns (max.)
- – Commercial: 15/17/20/25/35/55ns (max.)
- ◆Low-power operation
- – IDT7024S
- Active: 750mW (typ.)
- Standby: 5mW (typ.)
- – IDT7024L
- Active: 750mW (typ.)
- Standby: 1mW (typ.)
- ◆Separate upper-byte and lower-byte control for multiplexed bus compatibility
- ◆IDT7024 easily expands data bus width to 32 bits or more using the Master/Slave select when cascading more than one device
- ◆M/S= H for BUSYoutput flag on Master
- M/S= L for BUSYinput on Slave
- ◆Interrupt Flag
- ◆On-chip port arbitration logic
- ◆Full on-chip hardware support of semaphore signaling between ports
- ◆Fully asynchronous operation from either port
- ◆Battery backup operation—2V data retention
- ◆TTL-compatible, single 5V (±10%) power supply
- ◆Available in 84-pin PGA, Flatpack, PLCC, and 100-pin Thin Quad Flatpack
- ◆Industrial temperature range (–40°C to +85°C) is available for selected speeds
- ◆Green parts availble, see ordering information
IDT7024L15PFG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP-100 |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1.4 mm |
| Product Lifecycle Status | Unknown |
| RoHS | RoHS Compliant |
| ECCN Code | EAR99 |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
