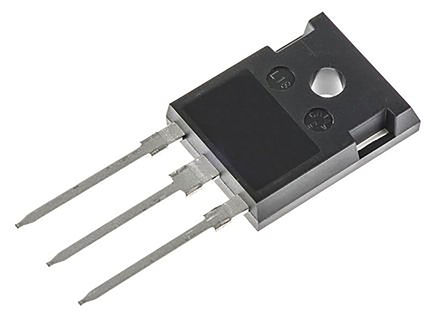

Image is for your reference only,please check specifications for details

IDW30G65C5 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC104734260
Category:
TVS Diode
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON IDW30G65C5 Silicon Carbide Schottky Diode, thinQ 5G 650V Series, Single, 650V, 30A, 42NC, TO-247
Stock Locations:
Availability:
288 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.84

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IDW30G65C5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.7V @30A
Power Dissipation	150 W
Reverse recovery time	0 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	165 A
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
