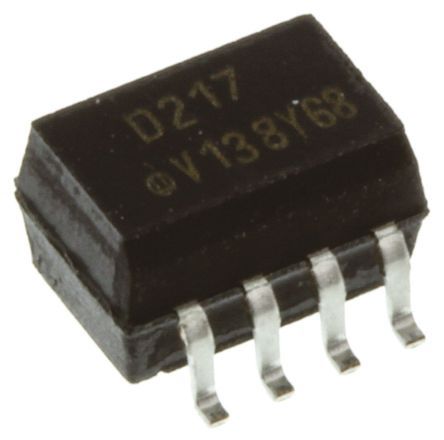

Image is for your reference only,please check specifications for details
- ILD217T - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC1653259
-
Category:Optocoupler, Optoisolator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Dual Channel 70V 4000Vrms 100% SMT Phototransistor Optocoupler - SOIC-8
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ILD217T is a 2-channel Phototransistor Output Optocoupler pairs with a gallium arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. For surface mounting which makes it ideally suited for high density applications with limited space.
- Standard lead spacing of 0.05"
- Compatible with dual wave, vapour phase and IR reflow soldering
ILD217T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Voltage Rating (DC) | 1.20 V |
| Rise/Fall Time | 3μs, 4.7μs |
| Output Voltage | 70.0 V |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Forward Voltage | 1.2 V |
| Input Current | 10.0 mA |
| Power Dissipation | 0.3 W |
| Rise Time | 0.005 ms |
| Isolation Voltage | 4000 Vrms |
| Forward Current | 30 mA |
| Output Voltage (Max) | 70 V |
| Input Current (Min) | 30 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.55 V |
| Forward Current (Max) | 30 mA |
| Fall Time | 0.004 ms |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 300 mW |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
