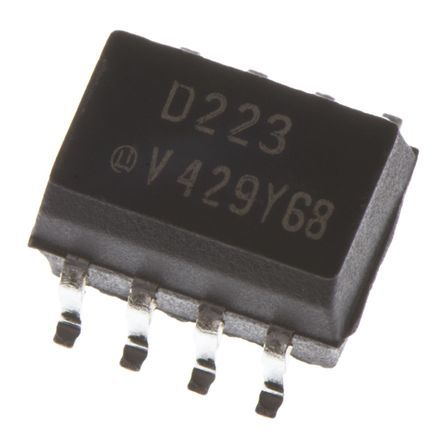

- ILD223T - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC12163600
-
Category:Optocoupler, Optoisolator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:ILD223T Series Dual Channel 30V 4000Vrms Phototransistor Optocoupler - SOIC-8
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ILD223T is a 2-channel high current transfer ratio Optocoupler has a gallium arsenide infrared LED emitter and silicon NPN photodarlington transistor detector. This device has CTRs tested at an LED current of 1mA. This low drive current permits easy interfacing from CMOS to LSTTL or TTL.
- Electrical specifications similar to standard 6-pin coupler
- Compatible with dual wave, vapour phase and IR reflow soldering
ILD223T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Voltage Rating (DC) | 1.30 V |
| Capacitance | 500 fF |
| Output Voltage | 30.0 V |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Forward Voltage | 1.3 V |
| Input Current | 30.0 mA |
| Power Dissipation | 0.25 W |
| Rise Time | 0.015 ms |
| Isolation Voltage | 4000 Vrms |
| Forward Current | 30 mA |
| Output Voltage (Max) | 30 V |
| Input Current (Min) | 30 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.3 V |
| Forward Current (Max) | 30 mA |
| Fall Time | 0.030 ms |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
