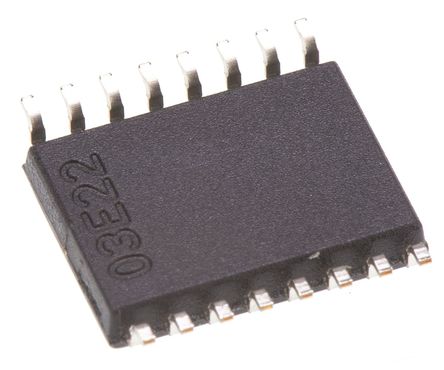

Image is for your reference only,please check specifications for details

INA116UA - TI
Manufacturer:
TI
ManyChip's Part#:
MC5897310
Category:
Instrumentation Amplifier IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA116UA Instrument Amplifier, 1, 5mV, 0.08V/ s, 800kHz, 4.5V to 18V, SOIC
Stock Locations:
Availability:
261 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.99

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA116UA is a complete monolithic FET-input Instrumentation Amplifier with extremely low input bias current. Difet® inputs and special guarding techniques yield input bias current of 3fA at 25°C and only 25fA at 85°C. Its 3 op-amp topology allows gains to be set from 1 to 1000 by connecting a single external resistor. Guard pins adjacent to both input connections can be used to drive circuit board and input cable guards to maintain extremely low input bias current.
Buffered guard drive pins
1mA Low quiescent current
±40V Input over-voltage protection
±0.005% Maximum non-linearity
Green product and no Sb/Br

Show

INA116UA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	15.0 V
Operating Voltage	4.5V ~ 18V
Supply Current	1 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	94 dB
Quiescent Current	1.00 mA
Bandwidth	800 kHz
Slew Rate	80.0 mV/μs
Gain Bandwidth Product	800 kHz
Gain	1.00 kdB
Input Offset Voltage	5 mV
Input Bias Current	0.003 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	800 kHz
Gain Bandwidth	70 kHz
Minimum CMRR Range	73 dB
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
