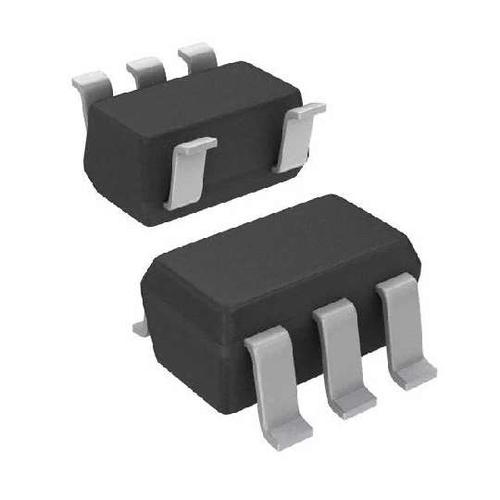

Image is for your reference only,please check specifications for details

INA198AIDBVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3126163
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA198AIDBVR Current Sense Amplifier, Common-Mode Range, 2 Amplifier, 16µA, SOT-23, 5Pins, -40℃, 125℃
Stock Locations:
Availability:
113 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Texas Instruments brings you their latest current shunt monitor INA198AIDBVR differential amplifier, a component that can be used to output a better quality sound than a mono amplifier. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device uses a single power supply. It has a single channel per chip.

Show

INA198AIDBVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	2.70V (min)
Supply Current	700 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	94 dB
Bandwidth	200 kHz
Slew Rate	1.00 V/μs
Input Offset Voltage	2 mV
Input Bias Current	16 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	80 dB
Accuracy	±3 %
Minimum CMRR Range	80 dB
Supply Voltage (Max)	18 V
Supply Voltage (Min)	2.7 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
