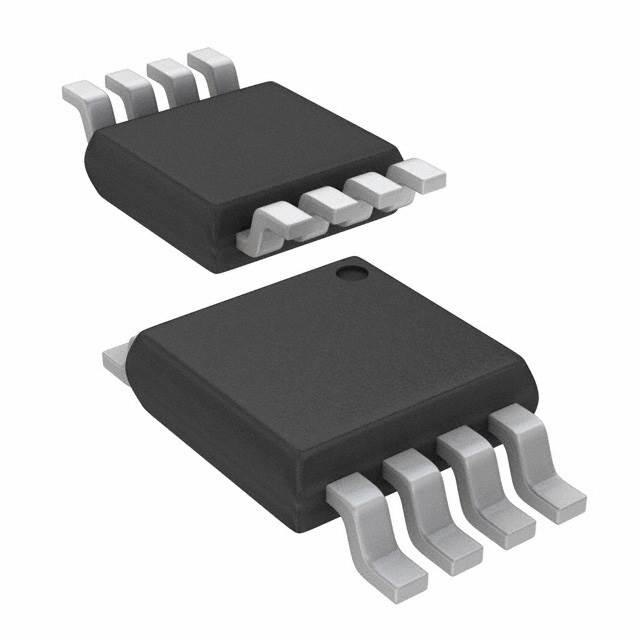

Image is for your reference only,please check specifications for details
- INA225AIDGKR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC22525832
-
Category:Amplifier
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:36V Programmable-Gain, Bidirectional, Zero-Drift, High-Speed, Voltage Output Current-Shunt Monitor 8-VSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:1,215 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.38
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Manipulate signals with this INA225AIDGKR preamplifier manufactured from Texas Instruments. Ideal for developmental phase of designing a circuit this INA225AIDGKR OP amp circuits developed by Texas Instruments is for you. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
INA225AIDGKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 95 dB |
| Gain Bandwidth Product | 0.25 MHz |
| Input Offset Voltage | 0.15 mV |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Minimum CMRR Range | 95 dB |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 2.7V ~ 36V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
