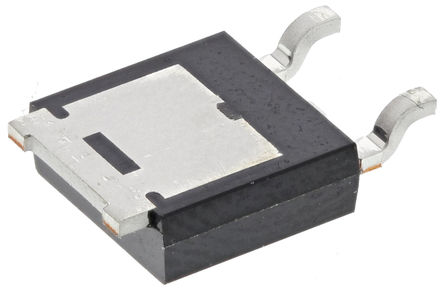

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IPD042P03L3 G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	3.5 mΩ
Polarity	P-Channel
Power Dissipation	150 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30 V
Rise Time	167 ns
Input Capacitance (Ciss)	12400pF @15V(Vds)
Fall Time	22 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150W (Tc)
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
