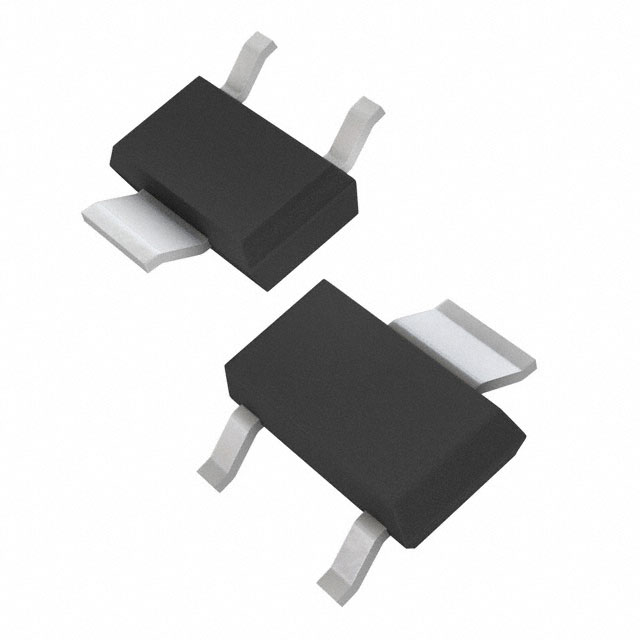

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Drop-in replacement for DPAK at lower cost
- Space savings in designs with low power dissipation
- Comparable thermal behavior to DPAK
- Target Applications:
- Lighting
- Adapter
- Consumer
IPN70R1K5CEATMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-223-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 1.35 Ω |
| Polarity | N-Channel |
| Power Dissipation | 5 W |
| Threshold Voltage | 3 V |
| Drain to Source Voltage (Vds) | 700 V |
| Continuous Drain Current (Ids) | 5.4A |
| Rise Time | 5.9 ns |
| Input Capacitance (Ciss) | 225pF @100V(Vds) |
| Fall Time | 18.2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 5W (Tc) |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
