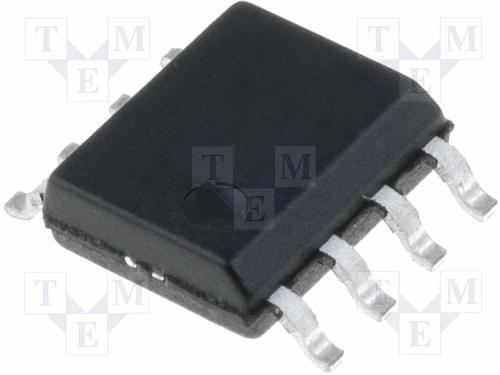

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IPS6041GPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Operating Voltage	28.0V (max)
Power Rating	1.25 W
Number of Outputs	1 Output
Input Voltage (DC)	5.50 V
Output Voltage	28 V
Output Current	1.6 A
Supply Current	2.2 mA
Load Current	220 mA
Drain to Source Resistance (on) (Rds)	0.13 Ω
Input Current	45 µA
Polarity	N-Channel
Power Dissipation	1.25 W
Part Family	IPS6041GPBF
Threshold Voltage	2.5 V
Continuous Drain Current (Ids)	1.60 A
Clamping Voltage	39 V
Fall Time	3 µs
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1250 mW
Supply Voltage	28 VDC
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4 V
Input Voltage	5.5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
