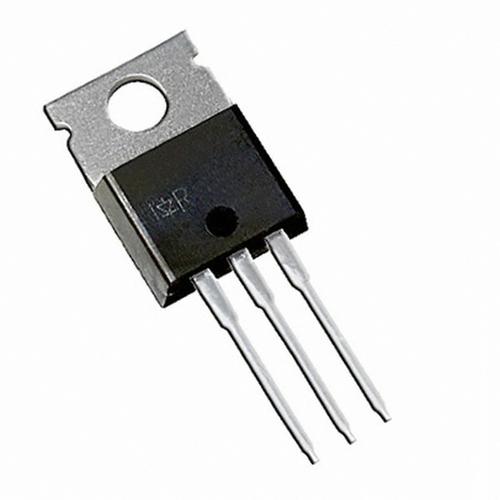

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
Specifically designed for Automotive applications, this design of HEXFET® Power MOSFETs utilizes the lastest processing techniques to achieve extremely low on resistance per silicon area. Additional features of this HEXFET power MOSFET are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Features
● Advanced Process Technology
● Ultra Low On-Resistance
● 175°C Operating Temperature
● Fast Switching
● Repetitive Avalanche Allowed up to Tjmax

Show

IRF1503 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Forward Voltage	1.30 V
Drain to Source Resistance (on) (Rds)	2.60 mΩ
Power Dissipation	330 W
Part Family	IRF1503
Breakdown Voltage (Drain to Source)	30.0 V
Rise Time	130 ns
	Show
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
