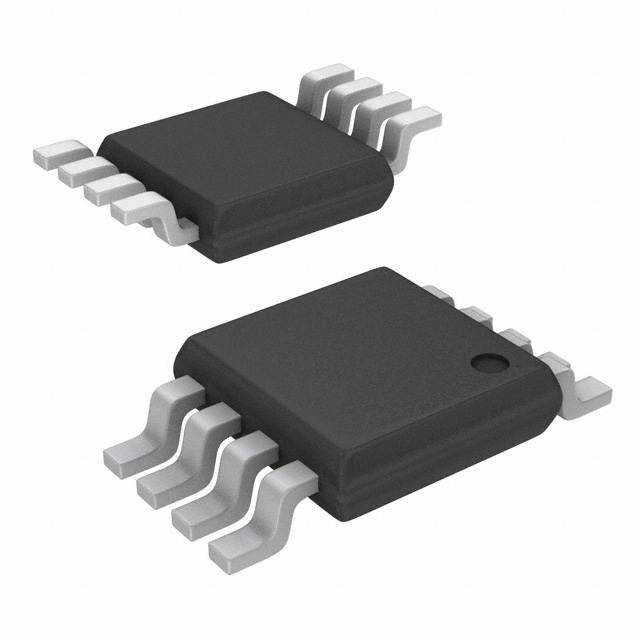

Image is for your reference only,please check specifications for details
Updated at 23/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Мосфетная матрица из 2 N-канальных транзисторов (двойной), 20 В, 2,4 А, поверхностный монтаж, 1,25 Вт, Micro8™
IRF7501TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Voltage Rating (DC) | 20.0 V |
| Current Rating | 2.40 A |
| Polarity | Dual N-Channel |
| Part Family | IRF7501 |
| Drain to Source Voltage (Vds) | 20 V |
| Breakdown Voltage (Drain to Source) | 20.0 V |
| Continuous Drain Current (Ids) | 2.40 A |
| Rise Time | 24 ns |
| Input Capacitance (Ciss) | 260pF @15V(Vds) |
| Rating Power (Max) | 1.25 W |
| Fall Time | 16 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1250 mW |
| Show | |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | End of Life |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
