IRF7739L2TR1PBF International Rectifier - MOSFET, MOSFET Transistor

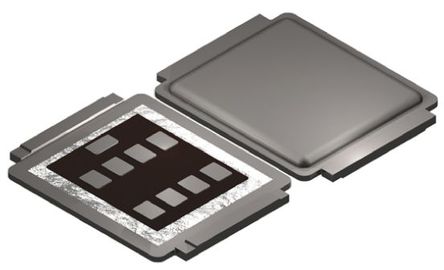

Image is for your reference only,please check specifications for details

Updated at 25/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRF7739L2TR1PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	DirectFET™ Isometric L8
Power Rating	125 W
Polarity	N-Channel
Power Dissipation	125 W
Part Family	IRF7739
Threshold Voltage	2.8 V
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	46.0 A
Input Capacitance (Ciss)	11880pF @25V(Vds)
Rating Power (Max)	3.8 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	125 W
	Show
Size-Length	9.15 mm
Size-Width	7.1 mm
Size-Height	0.676 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
