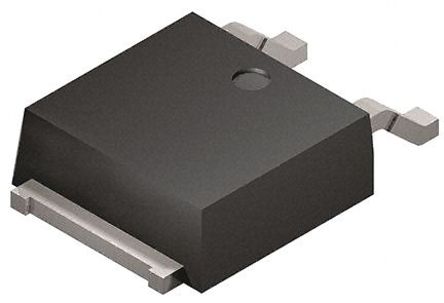

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
IRFR3806TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Power Rating | 71 W |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.0126 Ω |
| Polarity | N-Channel |
| Power Dissipation | 71 W |
| Threshold Voltage | 4 V |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 43A |
| Rise Time | 40 ns |
| Input Capacitance (Ciss) | 1150pF @50V(Vds) |
| Input Power (Max) | 71 W |
| Fall Time | 47 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 71W (Tc) |
| Show | |
| Size-Length | 6.73 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.39 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
