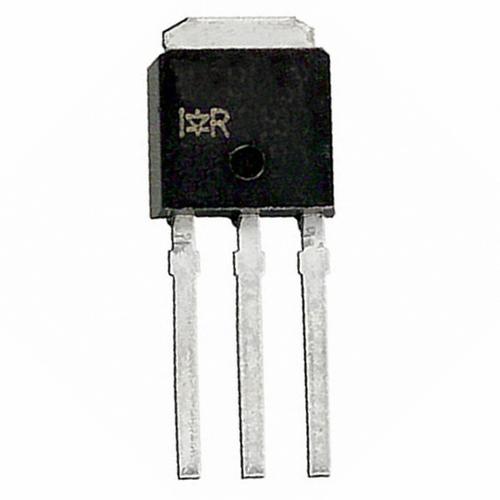

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
- Low RDS(on)
- Industry-leading quality
- Dynamic dv/dt Rating
- Fast Switching
- Fully Avalanche Rated
- 175°C Operating Temperature
- P-Channel MOSFET
IRFU9024N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | TO-251-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -1.60 A |
| Polarity | P-CH |
| Power Dissipation | 38W (Tc) |
| Part Family | IRFU9024N |
| Drain to Source Voltage (Vds) | 55 V |
| Continuous Drain Current (Ids) | 11.0 A |
| Rise Time | 55.0 ns |
| Input Capacitance (Ciss) | 350pF @25V(Vds) |
| Power Dissipation (Max) | 38W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
