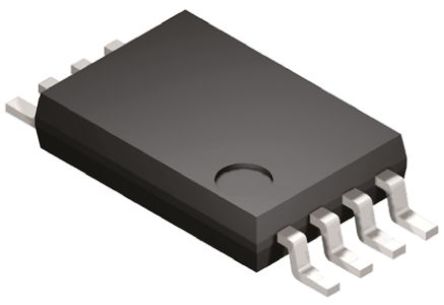

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISL55110IVZ is a dual high speed MOSFET Driver intended for applications requiring accurate pulse generation and buffering. With a wide output voltage range and low ON-resistance, this device can drive a variety of resistive and capacitive loads with fast rise and fall times, allowing high-speed operation with low skew. It is compatible with 3.3 and 5V logic families and incorporates tightly controlled input thresholds to minimize the effect of input rise time on output pulse width. It has a power-down mode for low power consumption during equipment standby times, making it ideal for portable products.
6ns Minimum pulse width
Low skew
In-phase outputs
Low quiescent current
1.5ns Rise and fall times at 100pF load

Show

ISL55110IVZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Frequency	100 MHz
Supply Voltage (DC)	2.70V (min)
Number of Outputs	2 Output
Output Voltage	14.5 V
Output Current	100 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Rise Time	1.2 ns
Output Voltage (Max)	13.2 V
Output Voltage (Min)	0 V
Fall Time	1.4 ns
Fall Time (Max)	6.9 ns
Fall Time (Max)	6.2 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	6.4 mm
Size-Width	3 mm
Size-Height	1.2 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
