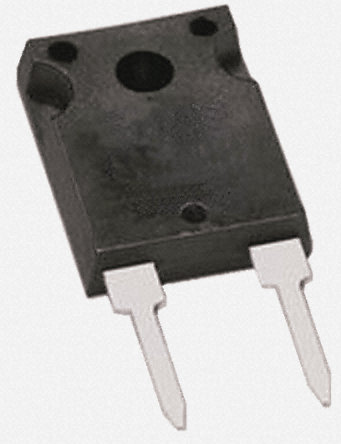

ISL9R30120G2 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC50071037
Category:
TVS Diode
Package:
TO-247-2
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR ISL9R30120G2 Standard Power Diode, 1.2kV, 30A, Single, 3.3V, 100ns, 325A
Stock Locations:
Availability:
66 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISL9R30120G2 is a STEALTH™ Standard Power Diode optimized for low-loss performance in high-frequency hard switched applications. The STEALTH™ family exhibits low reverse recovery current (Irr) and exceptionally soft recovery under typical operating conditions. This device is intended for use as a freewheeling or boost diode in power supplies and other power switching applications. The low Irr and short ta phase reduce loss in switching transistors. The soft recovery minimizes ringing, expanding the range of conditions under which the diode may be operated without the use of additional snubber circuitry. Consider using the STEALTH™ diode with an SMPS IGBT to provide the most efficient and highest power density design.
269ns at IF=30A Stealth recovery
High reliability
Avalanche energy rated

Show

ISL9R30120G2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-247-2
Voltage Rating (DC)	1.20 kV
Current Rating	30.0 A
Capacitance	115 pF
Output Current	≤30.0 A
Forward Voltage	3.3V @30A
Polarity	Standard
Thermal Resistance	1℃/W (RθJC)
Reverse recovery time	100 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	325 A
Maximum Forward Voltage (Max)	3.3 V
Forward Current (Max)	30 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	15.87 mm
Size-Width	4.82 mm
Size-Height	20.82 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
