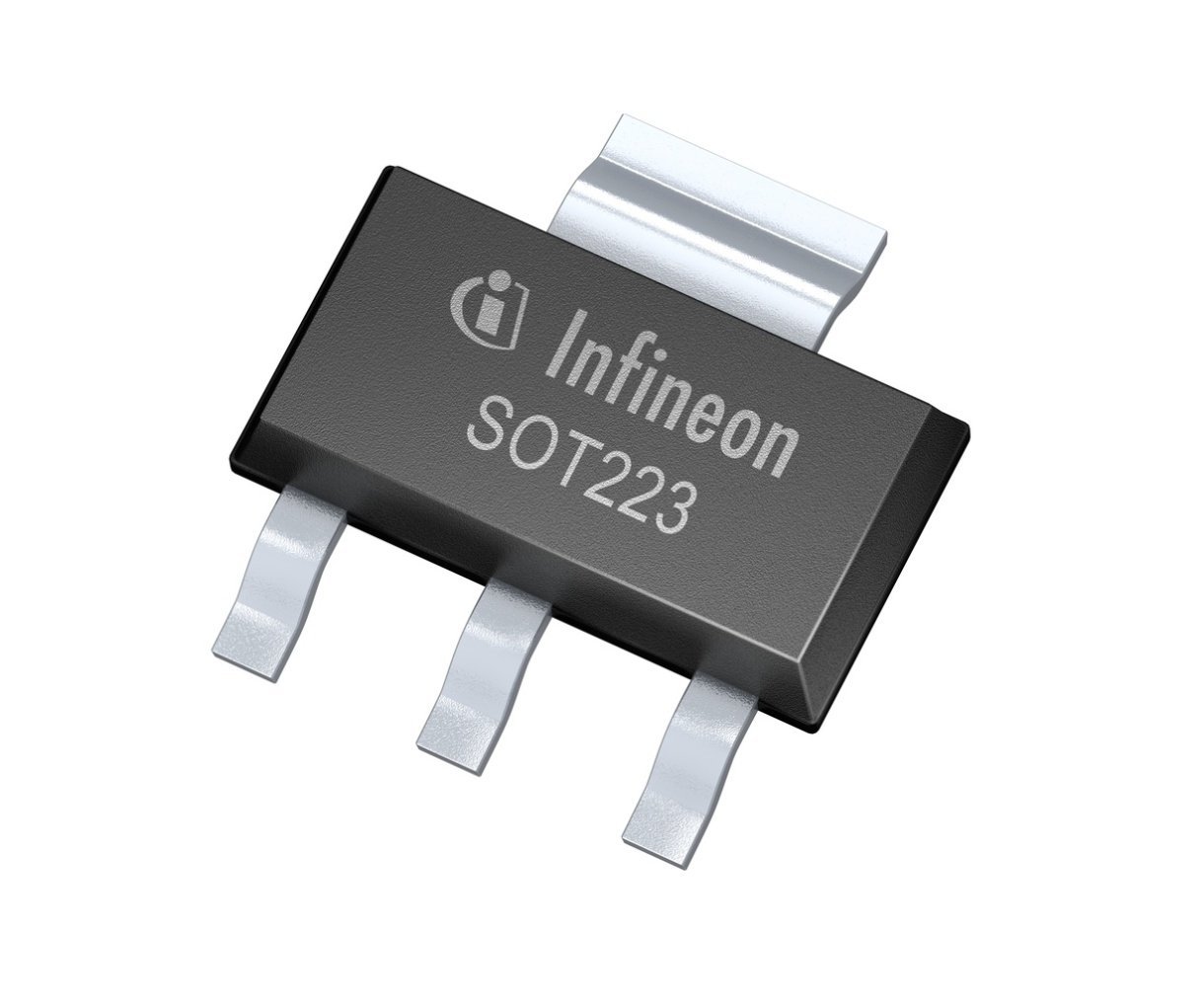

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISP452 is a Smart Power high-side vertical power FET Switch with charge pump, ground referenced CMOS compatible input and monolithically integrated in Smart SIPMOS® technology for industrial applications. It provides embedded protection functions and clamp of negative output voltage with inductive loads.
Short-circuit protection
Input protection
Over-temperature protection with hysteresis
Overload protection
Overvoltage protection
Switching inductive load
Under-voltage shutdown
Maximum current internally limited
ESD sensitive device, take proper precaution while handling the device.

Show

ISP452HUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Number of Outputs	1 Output
Output Current	0.7 A
Supply Current	1 mA
Number of Positions	4 Position
Power Dissipation	1.8 W
Output Current (Min)	0.7 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Power Dissipation (Max)	1800 mW
Supply Voltage (Max)	34 V
Supply Voltage (Min)	5 V
Input Voltage	40 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
