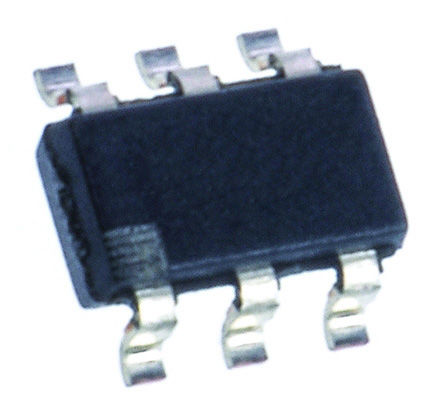

REG71050DDCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC4868364
Category:
DC to DC Converter
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Buck-Boost Charge Pump Regulator 60mA, 5V, Buck/Boost Charge Pump in ThinSOT-23 Charge Pump STPUP/STPDN 5V 30mA 6Pin TSOT-23 T/R
Stock Locations:
Availability:
299 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.76

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The REG71050DDCT is a 60mA 5V Buck/Boost Charge Pump. A wide input supply voltage makes the REG710 family of device ideal for a variety of battery sources, such as single-cell Li-Ion or 2 and 3-cell nickel-based or alkaline-based chemistries. The input voltage may vary above and below the output voltage and the output remains in regulation. The device works as step-up or step-down converters without the need of an inductor, providing low EMI DC-DC conversion. The high switching frequency allows the use of small surface-mount capacitors, saving board space and reducing cost. The REG710 device is thermally protected and current limited, protecting the load and the regulator during fault conditions. Typical ground pin current (quiescent current) is 65µA with no load and less than 1µA in shutdown mode.
Automatic step-up and step-down operation
Low input current ripple
Low output voltage ripple
Minimum number of external components
1MHz Internal oscillator allows small capacitors
Shutdown mode
Thermal and current limit protection
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

REG71050DDCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	60 mA
Number of Positions	6 Position
Quiescent Current	65.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 5.5V
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	0.87 mm
Weight	0.000576062348 kg
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
