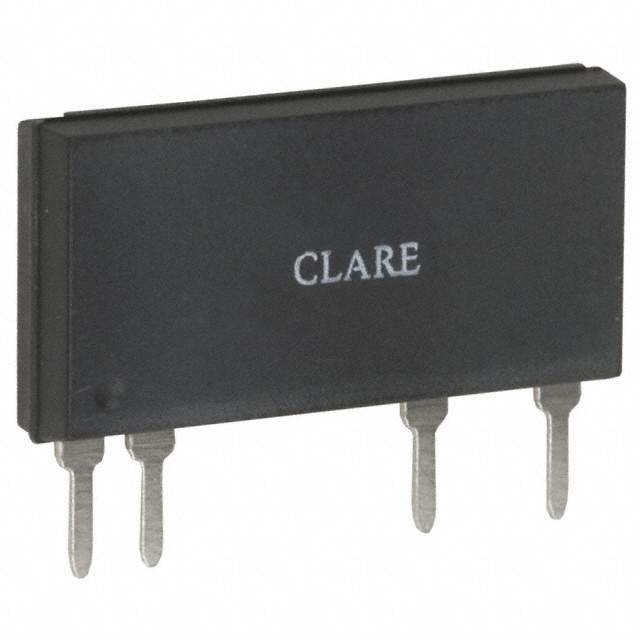

Image is for your reference only,please check specifications for details
- PS2601 - IXYS Semiconductor
-
Manufacturer:IXYS Semiconductor
-
ManyChip's Part#:MC111782234
-
Category:Solid State Relay
-
Package:SIP-8
-
Datasheet:Datasheet 3D Model
-
Description:PS Series SPST 600V 1A 1Channel Solid State Relay - 4Pin (8Pin Body) SIP
-
Stock Locations:
-
Availability:465 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.46
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Solid State SPST-NO (1 Form A) 8-SIP, 4 Leads
PS2601 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-8 |
| Output Current | ≤1.00 A |
| Contacts Type | SPST-NO |
| Load Current | 1 A |
| Power Dissipation | 1600 mW |
| Input Voltage (Max) | 1.4 V |
| Input Voltage (Min) | 0.9 V |
| Input Current (Min) | 100 mA |
| Load Current (Min) | 5 mArms |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 1.2 VDC |
| Show | |
| Size-Length | 19.20 mm |
| Size-Width | 6.35 mm |
| Size-Height | 3.30 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
