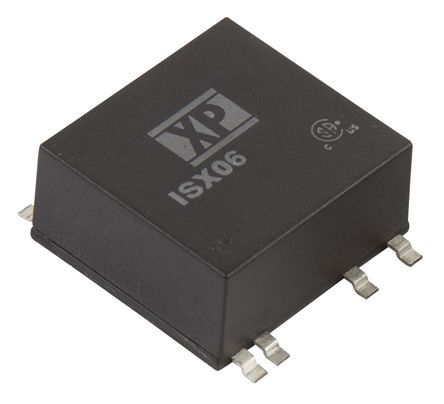

Image is for your reference only,please check specifications for details

ISX0648S05 - XP Power
Manufacturer:
XP Power
ManyChip's Part#:
MC140007335
Category:
DC to DC Converter, DC/DC Converter
Package:
SMD-16
Datasheet:
Datasheet 3D Model
Description:
XP POWER ISX0648S05 Isolated Board Mount DC-DC Converter, Fixed, 1 Output, 18V, 75V, 6W, 5V
Stock Locations:
Availability:
13 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 30.64

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISX0648S05 from XP Power is an ISX06 series 6W regulated single output DC to DC converter. This converter has wide 4:1 input range in compact SMD package. It has input to output isolation of 1500VDC/1800VDC at 60s/1s, isolation resistance of 10^9ohm at 500VDC and isolation capacitance of 1200pF at 1V, 100KHz. The converter features continuous short circuit protection with auto recovery and 150% foldback overload protection. It is approved by CB, IEC60950-1 and UL/cUL60950-1 standards.
Input voltage range from 18V to 75V
Output voltage of 5V, minimum output current of 180mA and maximum output current of 1200mA
Input current of 20mA at no load and 160mA at full load
Maximum capacitive load of 330µF and efficiency of 79%
Ripple and noise of 100mV pk-pk
Remote on/off
Initial set accuracy of ±1%, line regulation of ±0.5% and load regulation of ±0.5%
Switching frequency of 330KHz
1inch x 0.871inch x 0.4inch (25.4mm x 22mm x 10.2mm) dimension and weight is 7.8g
Operating temperature range from -40°C to 100°C

Show

ISX0648S05 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD-16
Power Rating	6 W
Number of Outputs	1 Output
Output Voltage	5 VDC
Isolation Voltage	1.5 kV
Input Voltage (Max)	75 V
Input Voltage (Min)	18 V
Input Voltage (DC Max)	75 V
Input Voltage (DC Min)	18 v
Output Current (Max)	1.25 A
Input Current (Min)	20mA(No Load), 160mA(Full Load)
Input Power (Max)	6 W
Input Power (Max)	6 W
Input Voltage	18VDC ~ 75VDC
	Show
Size-Length	22 mm
Size-Width	10.2 mm
Size-Height	22 mm
Weight	7.8 g
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
