Description

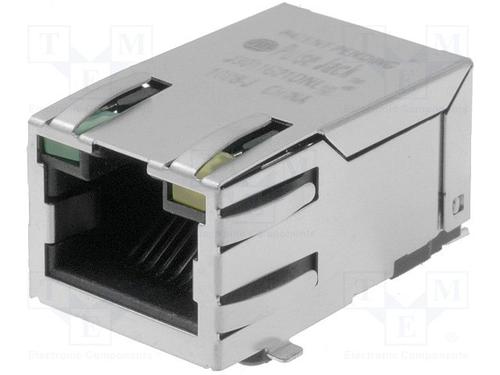

- This rj-45 J3011G21DNL telephone and telecom connector from Pulse is perfect for high-speed signals. This F connector"s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. Its pitch is 1.27 mm. It has a female type gender. It has a right angle body orientation. This component comes in tray packaging, useful for fast picking and placing of your parts. It uses the solder termination method. This product is 16.1 mm long, 13.61 mm tall and 25.4 mm deep. J3011G21DNL is housed in thermoplastic. This part has an operating temperature of 0 to 70 °C.
J3011G21DNL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Number of Contacts | 8 Contact |
| Contact Plating | Gold |
| Number of Rows | 1 Row |
| Orientation | Right Angle |
| Number of Mating Cycles | 750 Cycle |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Size-Length | 16.1 mm |
| Size-Width | 25.4 mm |
| Size-Height | 13.61 mm |
| Contact Material | Phosphor Bronze |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
