Description
- DESCRIPTION
- This “standard recovery” rectifier diode series is military qualified to MIL-PRF-19500/427 and is ideal for high-reliability applications where a failure cannot be Tolerated. These industry-recognized 1.0 Amp rated rectifiers for working peak reverse voltages from 200 to 1000 volts are hermetically sealed with voidless glass construction using an internal “Category I” metallurgical bond. These devices are also available in surface mount MELF package configurations by adding a “US” suffix (see separate data sheet for 1N5614US thru 1N5622US). Microsemi also offers numerous other rectifier products to meet higher and lower current ratings with various recovery time speed requirements including fast and ultrafast device types in both through-hole and surface mount packages.
- FEATURES
- • Popular JEDEC registered 1N5614 to 1N5622 series
- • Voidless hermetically sealed glass package
- •Triple-Layer Passivation
- •Internal “Category I”Metallurgical bonds
- • Working Peak Reverse Voltage 200 to 1000 Volts.
- • JAN, JANTX, JANTXV, and JANS available per MIL PRF-19500/427
- • Surface mount equivalents also available in a square end-cap MELF configuration with “US” suffix (seeseparate data sheet for 1N5614US thru 1N5622US)

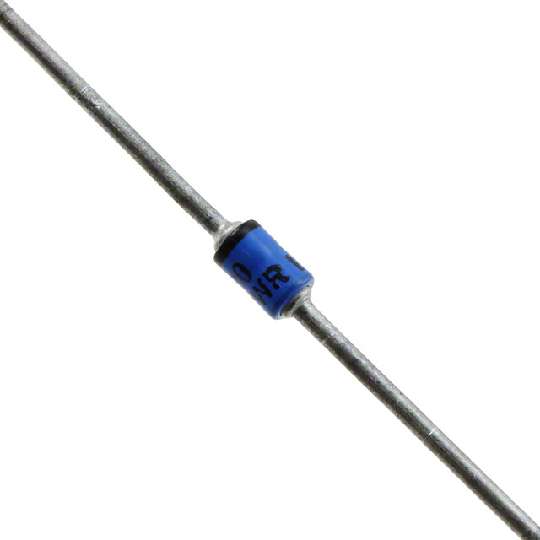

JANTXV1N5620 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | A-Package-2 |
| Forward Voltage | 1.3V @3A |
| Reverse recovery time | 2000 ns |
| Maximum Forward Voltage (Max) | 1.3V @3A |
| Operating Temperature (Max) | 200 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 5.21 mm |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | Non-Compliant |
| Lead-Free Status | |
| Mil-Spec | Yes |
