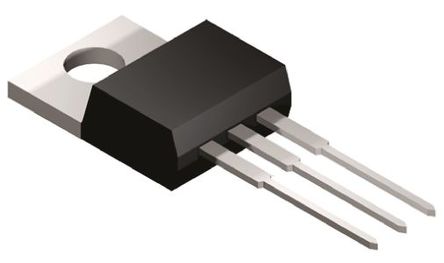

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KA317TU is an adjustable 3-terminal monolithic Positive Voltage Regulator designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V range. It employs internal current limiting, thermal shutdown and safe area compensation.
Internal thermal overload protection
Internal short-circuit current limiting

Show

KA317TU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Outputs	1 Output
Output Voltage	1.2V ~ 37V
Output Current	1.5 A
Number of Positions	3 Position
voltage rating	2.65 V
Input Voltage (Max)	40 V
Output Voltage (Max)	37 V
Output Voltage (Min)	1.2 V
Output Current (Max)	2.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	≤40 V
	Show
Size-Length	10.1 mm
Size-Width	4.7 mm
Size-Height	9.4 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
