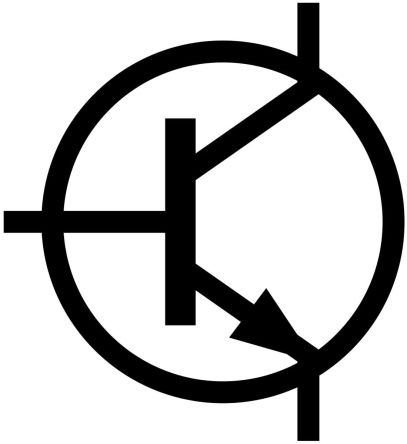

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KST2222AMTF is a NPN epitaxial Silicon Transistor offers 75V collector base voltage and 600mA collector current.
General purpose transistor

Show

KST2222AMTF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Positions	3 Position
Power Dissipation	350 mW
Breakdown Voltage (Collector to Emitter)	40 V
hFE Min	100 @150mA, 10V
Input Power (Max)	350 mW
DC Current Gain (hFE)	35
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350 mW
	Show
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.97 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
