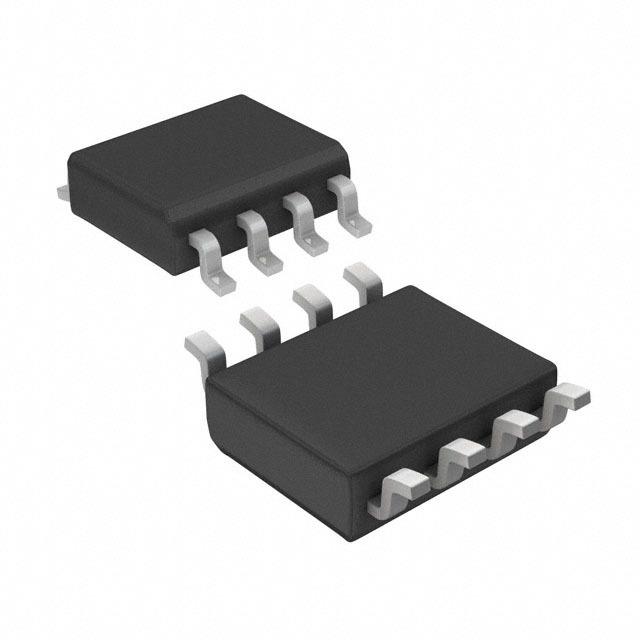

- L6569AD013TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC44499763
-
Category:FET Driver
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET DRVR 600V 0.275A 2Out Hi/Lo Side Half Brdg Inv/Non-Inv 8Pin SO T/R
-
Stock Locations:
-
Availability:9,110 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.2
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Manage power passing through your transistors and gates with the use of STMicroelectronics" L6569AD013TR power driver. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This gate driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a minimum operating supply voltage of 10 V and a maximum of 16.6 V.
L6569AD013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Frequency | 0.2 MHz |
| Supply Voltage (DC) | 16.6V (max) |
| Number of Outputs | 2 Output |
| Supply Current | 25.0 mA |
| Number of Positions | 8 Position |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 10V ~ 16.6V |
| Supply Voltage (Max) | 16.6 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
