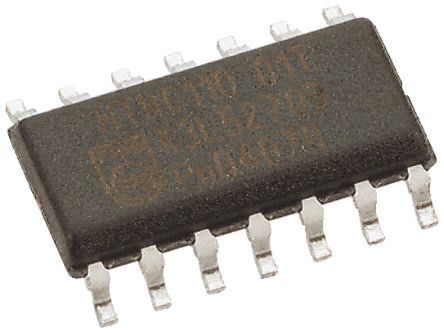

Image is for your reference only,please check specifications for details
- L6699D - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC15247900
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:Soft Sw PWM Cntrlr Controller 58.2kHz to 61.8kHz/225kHz to 245kHz 16Pin SO Tube
-
Stock Locations:
-
Availability:1,397 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.98
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The L6699D is a double-ended enhanced high voltage Resonant Controller specific to series-resonant half bridge topology. Both LLC and LCC configurations are supported. It provides symmetrical complementary duty cycle: the high-side switch and the low-side switch are driven ON/OFF 180° out-of phase for exactly the same time. Output voltage regulation is obtained by modulating the operating frequency. The dead-time inserted between the turn-OFF of one switch and the turn-ON of the other one is automatically adjusted to best fit the transition times of the half bridge midpoint. To drive the high-side switch with the bootstrap approach, the IC incorporates a high voltage floating structure able to withstand more than 600V with a synchronous-driven high voltage DMOS that replaces the external fast-recovery bootstrap diode. The IC enables the user to set the operating frequency range of the converter by means of a high-accuracy externally programmable oscillator.
- Symmetrical duty cycle, variable frequency control of resonant half bridge
- Self-adjusting adaptive deadtime
- High-accuracy oscillator
- 2-level OCP - Frequency-shift and immediate shutdown
- Interface with PFC controller
- Anti-capacitive-mode protection
- Burst-mode operation at light load
- Input for brownout protection or power-on/off sequencing
- "Safe-start" procedure prevents hard switching at startup
- 600V - Rail compatible high-side gate driver with integrated bootstrap diode and high dv/dt immunity
- -300/800mA high-side and low-side gate drivers with UVLO pull-down
L6699D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 8.85V (min) |
| Number of Outputs | 1 Output |
| Breakdown Voltage | 600 V |
| Number of Positions | 16 Position |
| Input Current | 4.1 mA |
| Power Dissipation | 830 mW |
| Rise Time | 60 ns |
| Switching Frequency | 60kHz ~ 235kHz |
| Thermal Resistance | 120 ℃/W |
| Duty Cycle | 50 % |
| Maximum Duty Cycle | 50 % |
| Fall Time | 30 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 830 mW |
| Supply Voltage | 8.85V ~ 16V |
| Supply Voltage (Max) | 16 V |
| Supply Voltage (Min) | 8.85 V |
| Input Voltage | 16 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
