Description

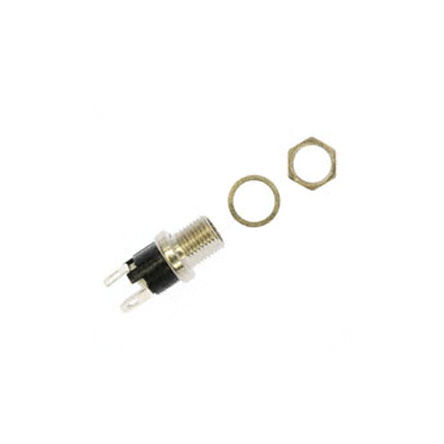

The L712A is a straight DC Power Jack with longer bushing (0.319") to accommodate thicker panel mount applications.
Thermoplastic Housing
Plated Copper Alloy Bushing and Terminals
Rigid Plastic Terminals
0.100" (2.5mm) Pin

Show

L712A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	3 Contact
Gender	Male
Voltage Rating (DC)	12.0 V
Current Rating	5 A
Insulation Resistance	10000 MΩ
Contact Resistance	≤0.01 Ω
Mounting Angle	180 °
Current Rating (Max)	5A/触头
Voltage Rating (Max)	12 VAC
Voltage Rating	12 V
	Show
Size-Length	20.8 mm
Size-Diameter	2.50 mm
Color	Silver
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694050
ECCN Code	EAR99
