Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

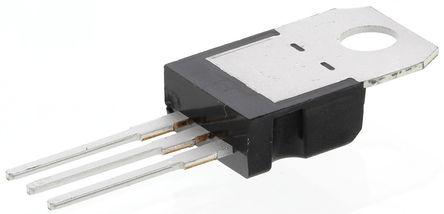

Case/Package | TO-220-3 |
Supply Voltage (DC) | 15.0V (max) |
Operating Voltage | 0V ~ 15V |
Number of Outputs | 1 Output |
Input Voltage (DC) | 10.0V (max) |
Output Voltage | 3.3 V |
Output Current | 800 mA |
Supply Current | 10 mA |
Number of Positions | 3 Position |
Power Dissipation | 12 W |
Quiescent Current | 5 mA |
voltage rating | 1.1 V |
Input Voltage (Max) | 15 V |
Output Voltage (Min) | 3.3 V |
Output Current (Max) | 1.3 A |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Power Dissipation (Max) | 12000 mW |
Accuracy | ±1 % |
Input Voltage | 15 V |
Show | |
Size-Length | 10.4 mm |
Size-Width | 4.6 mm |
Size-Height | 9.15 mm |
Operating Temperature | -40℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
